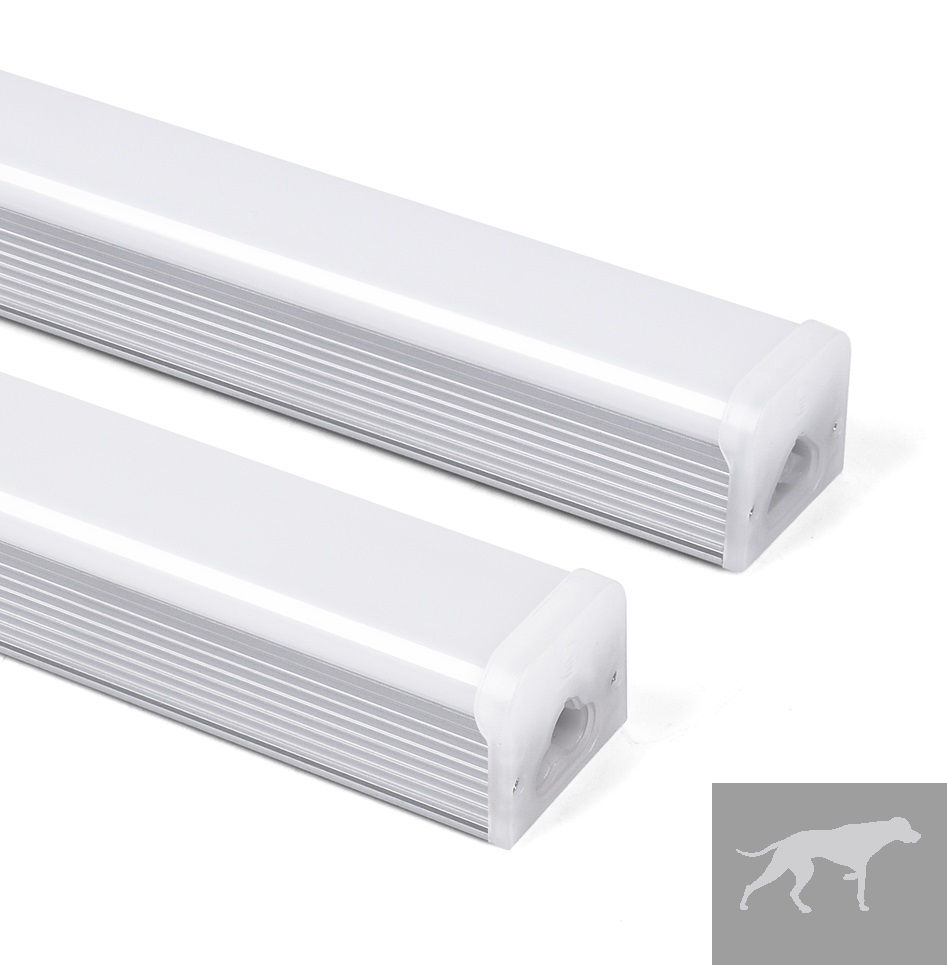

PNL Series LEDs
The PNL series is a compact, sleek, linear light offering evenly diffused lighting in a small form factor.  Available in a 1ft single width (5S) or a 4ft double width (5D) option.  Optimal for control panel, machine and workbench applications.

Includes mount and clips for more permanent installations, as well as clip-on magnets for adjustable mobility.  Light includes a standard on-off switch as well as an end connector that allows more than one light to be "daisy-chained" together (up to 200W) for larger installations.

PNL Series LEDs

PriceFrom $49.99
Quantity

  • PNL 5D 4ft:

    • Voltage: 120 VAC, 50-60 Hz
    • Power: 0.36 Amps, 40 Watts
    • Size: 45.25"L x 1.62"W x 1.42"H
    • Brightness: 4000 Lumens
    • Color temperature: 5000-5500K
    • NRTL Listing: UL Std. 1598 / CSA STD.C22.2 No. 250.0
    • Included Accessories:
    • 3 Magnet Mounts, 2 Surface Mount Brackets (screws), Wire Lead Connection Cable (4"). Daisy Chain Interconnector (0"), Daisy Chain Cable Connector (9"), AC Cord with Nema 5-15 Connector ( 6 feet)



    PNL 5S 1ft:

    • Voltage: 120 VAC, 50-60 Hz
    • Power: 0.04 Amps, 4 Watts
    • Size: 11"L x 1.3"W x 1.5"H
    • Brightness: 450 Lumens
    • Color temperature: 5000-5500K
    • NRTL Listing: UL Std. 1598 / CSA STD.C22.2 No. 250.0
    • Included Accessories:
    • 2 Magnet Mounts, 2 Surface Mount Brackets (screws), Wire Lead Connection Cable (4"). Daisy Chain Interconnector (0"), Daisy Chain Cable Connector (9"), AC Cord with Nema 5-15 Connector (6 feet)
